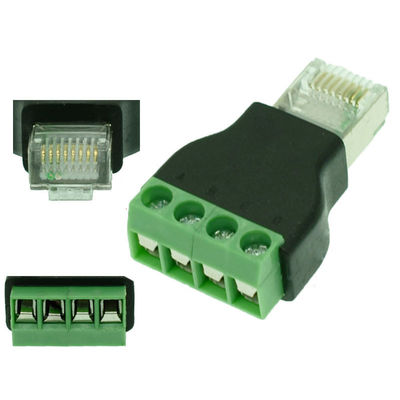

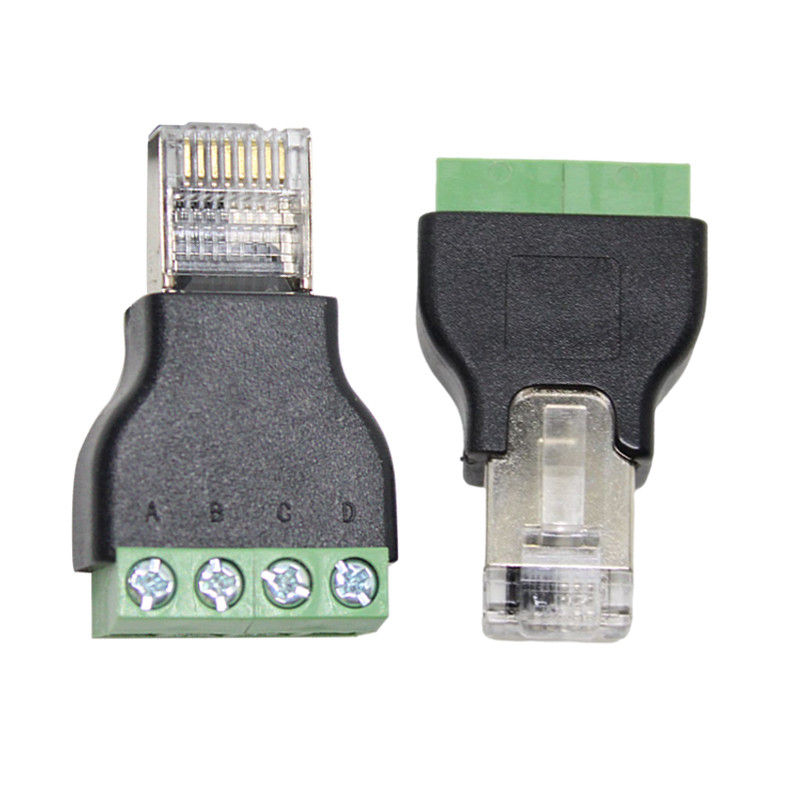

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	RJ45-8P8C-4Pin

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000 /Pieces per Day

Contact Now

Detailed Product Description

Type:	RJ45-TB-4PIN	Application:	Audio & Video
Gender:	Male	Color:	Green

8P8C RJ45 Male to 4 pin Screw Terminal Blocks

if you need RJ45 to 4-pin screw terminal block , you need to define the 4-Pin positions based on actual pinout diagram.

There are 3 typical product types as below:

Product type A: Pin1-A + pin2-B + pin3-C + pin4-D

Product type B: Pin5-A + pin6-B + pin7-C + pin8-D

Product type C: Pin3-A + pin4-B + pin5-C + pin6-D

Product type D: Pin1-A + pin2-B + pin3-C + pin6-D

or others

you may also define other connections

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter 0

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter 1

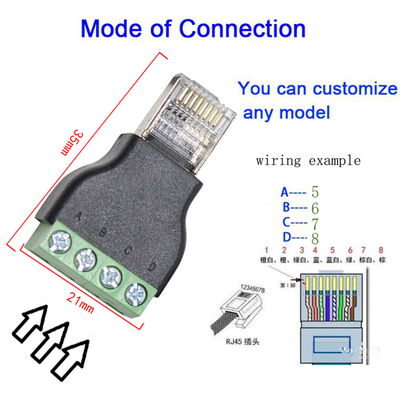

Pinout example 1

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter 2

Pinout example 2

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter 3

RJ45 Network Male Plug 8P8C to 4 Pin Screw Terminal Blocks RS485 Adapter 4
