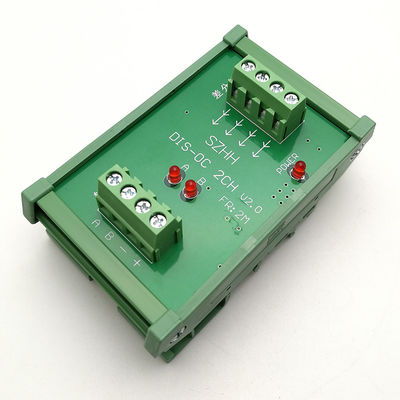

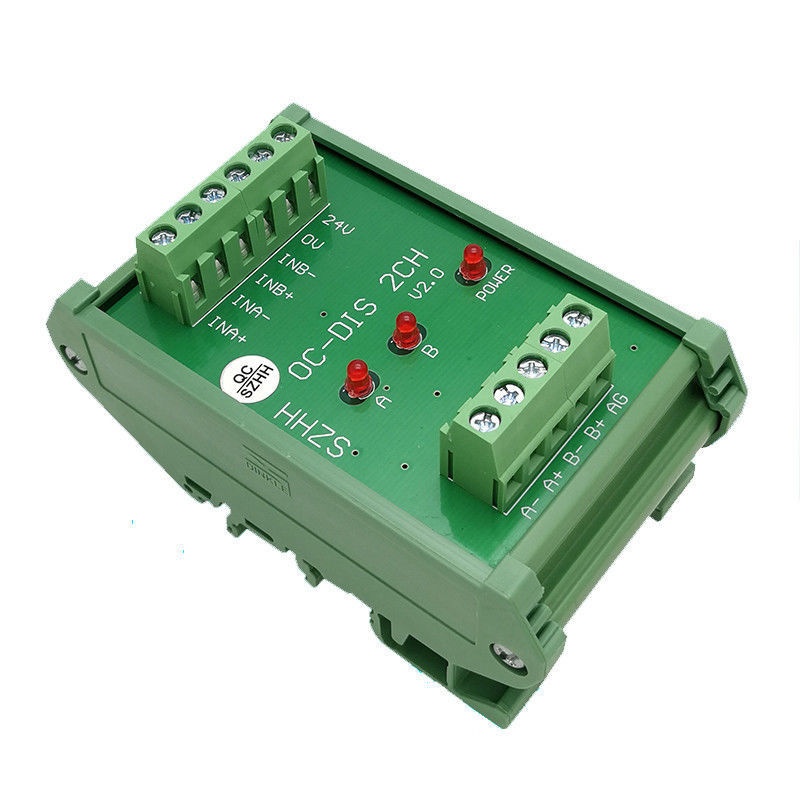

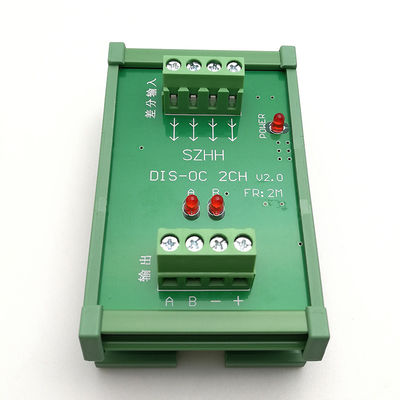

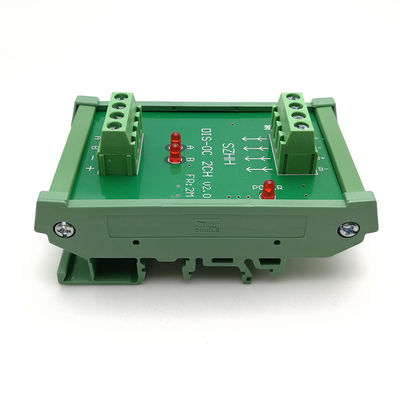

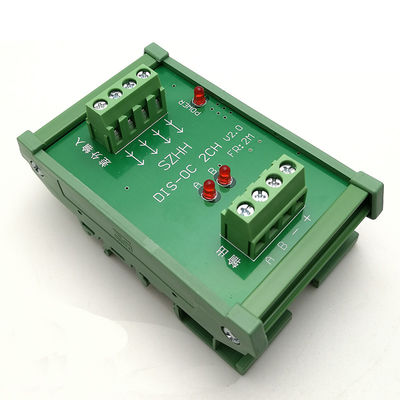

Name: Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
Brand: Jetacon Technology Limited
SKU: OC-DIS 2CH
Price: Negotiable USD
Availability: InStock

Home Products Terminal Blocks Interface Module

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	OC-DIS 2CH

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Power Supply:	DC14-36V, 24V Typical	Singal Input:	HTL 5V- 24V
Signal Output:	TTL 5V Below

The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal , to control the servo system

Support A, B, and Z three-phase differential simultaneous conversion
Industrial Temperature Range: - 45 ~ + 85 ℃

Introduction:
1. The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal , 2 channels, electrical isolation between input and output,control the PLC Servo system
2. Working frequency: 2000000Hz
3. The Iutput mode: Accept All NPN or PNP PLC interface .

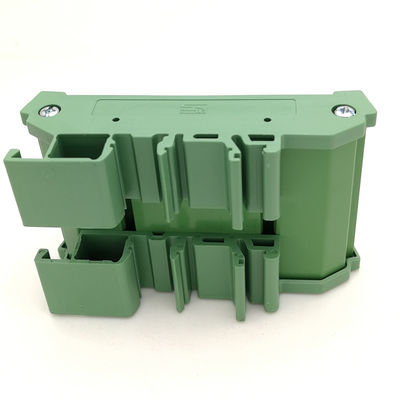

4. Installation: DIN35mm rail mounting

5. Product Size: 53mm x 87mm x 35mm

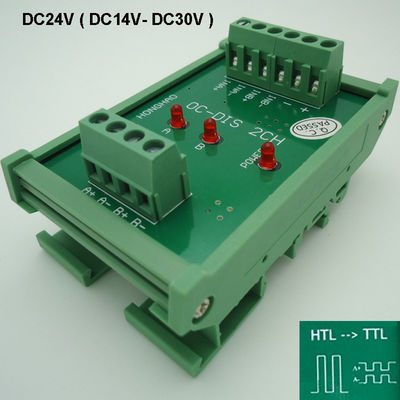

6. Rated Power Supply Voltage: DC24V ( DC14V- DC30V is also available in some condition)

Package Included:
1 * Differential to Collector
Note: some times the item is from customized products, the actual updated product will have some minor difference from the photo, thanks.
