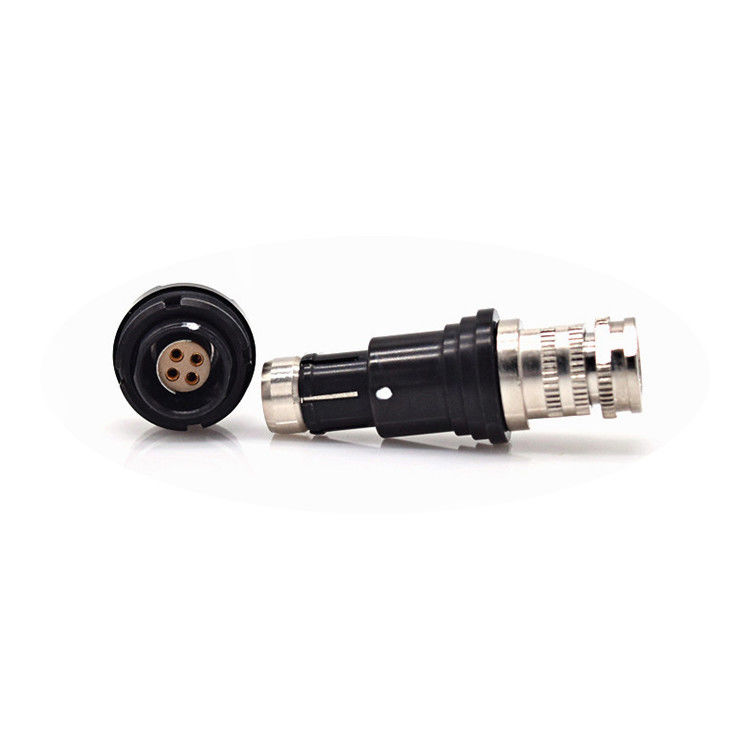

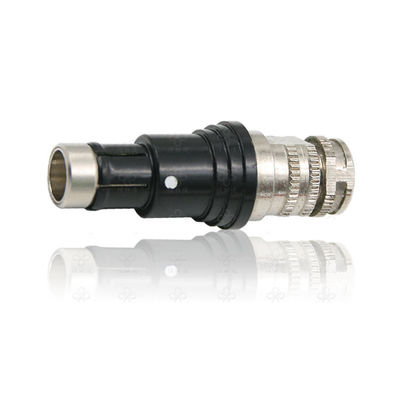

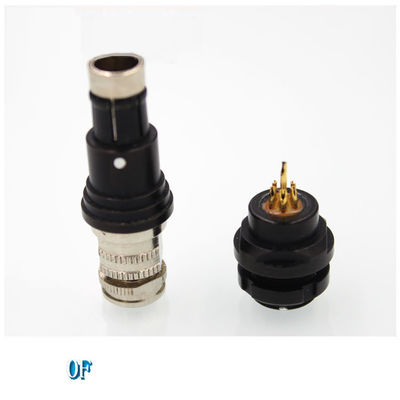

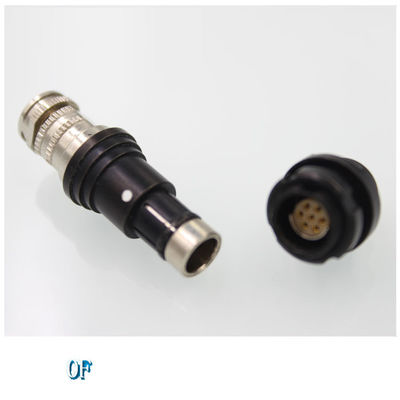

102F Body Styles Series Short Type Metal Push Pull Circular Cable Mount Plug Connector

Product Details:

Place of Origin:	China Mainland
Brand Name:	Jetacon
Certification:	CE
Model Number:	102F

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	US $29.99
Packaging Details:	Standard Export Carton
Delivery Time:	3-5 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100 /Pieces per Day

Contact Now

Detailed Product Description

Material:	Metal	Application:	Medical Or Others
Waterproof:	IP67

Series 1F / 2F/ 3F/ 4F ( Metal ( Mechanical Keying ))

Shell Style / Model Straight plug, cable collet
Keying 1 key( half-moon ,plug;male contacts, receptacle:female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Cable Fixing 2.5 - 7.0 mm (0.10 - 0.276")

PERFORMANCE DETAILS
Insert 7 Low Voltage
Configuration Brass (gold plated)
Insulator P: PPS
Specifications Low Voltage Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028")
Bucket Dia.: 0.6 mm (0.025")
Max. Solid Conductor: 0.15 mm^2 (AWG 24)
Max. Stranded Conductor: 0.15 mm^2 (AWG 24)
R (max): 7.5 mOhm
Vtest (contact-shell): 1150 V
Vtest (contact-contact): 1000 V
Rated Current: 4 A (AC/DC)
