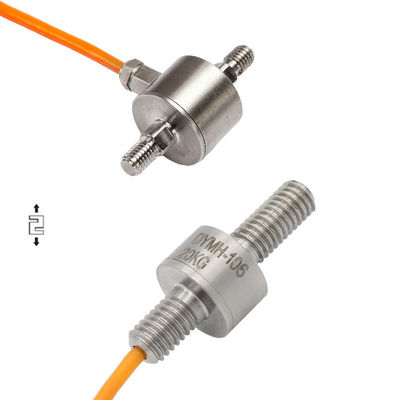

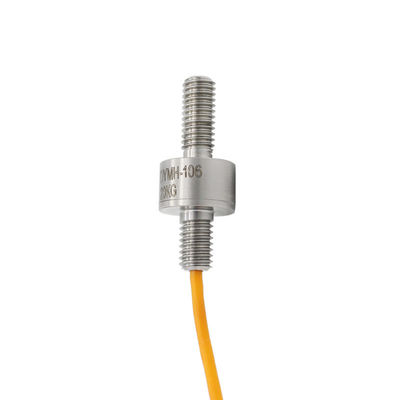

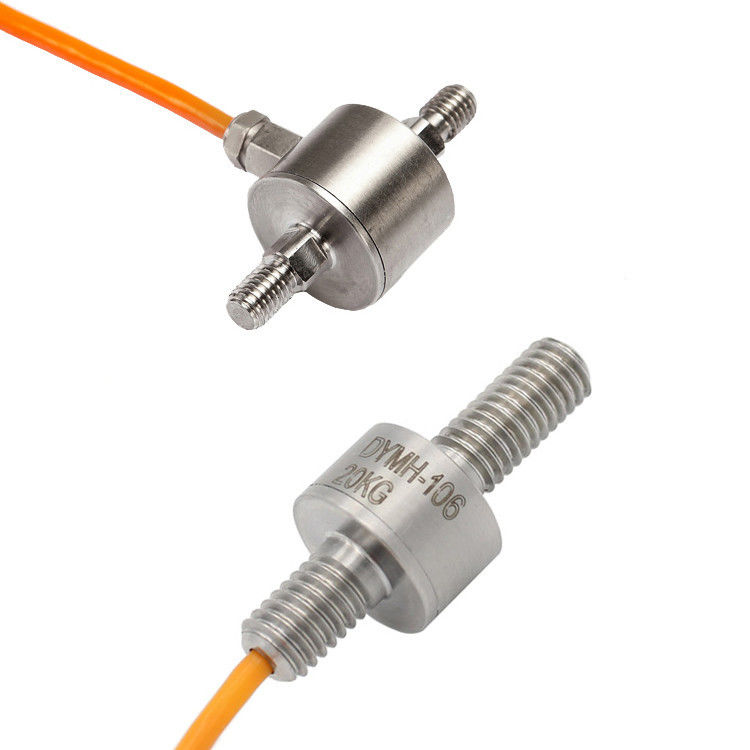

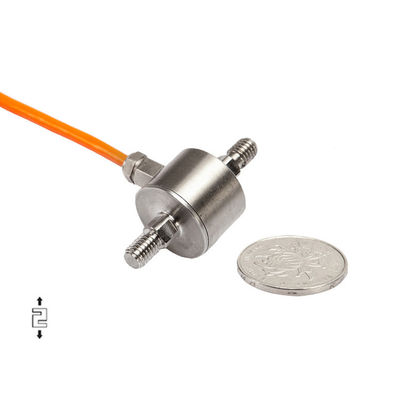

Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

Product Details:

Place of Origin:	China Mainland
Brand Name:	OEM
Certification:	CE
Model Number:	Mini-Load Cell

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pieces
Price:	US $199.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100 /Pieces per Day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Waterproof:	IP65
Application:	Force Sensor	Zero Output:	± 0.2 MV / V
Capacity:	3kg 10kg 20kg 50kg 100kg	Diameter:	13mm

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg

Cable Length: 3 meters long typically

Parameters:

Capacity	0 - 3kg ~ 2000kg	Material	Stainless Steel
Rated output	1.5 ±10% mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m
Wire Connection	Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative);
