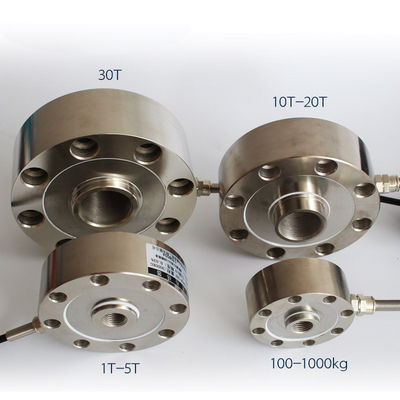

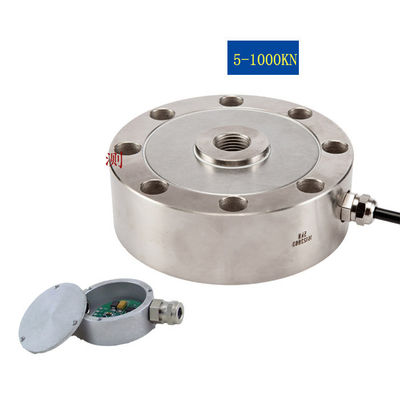

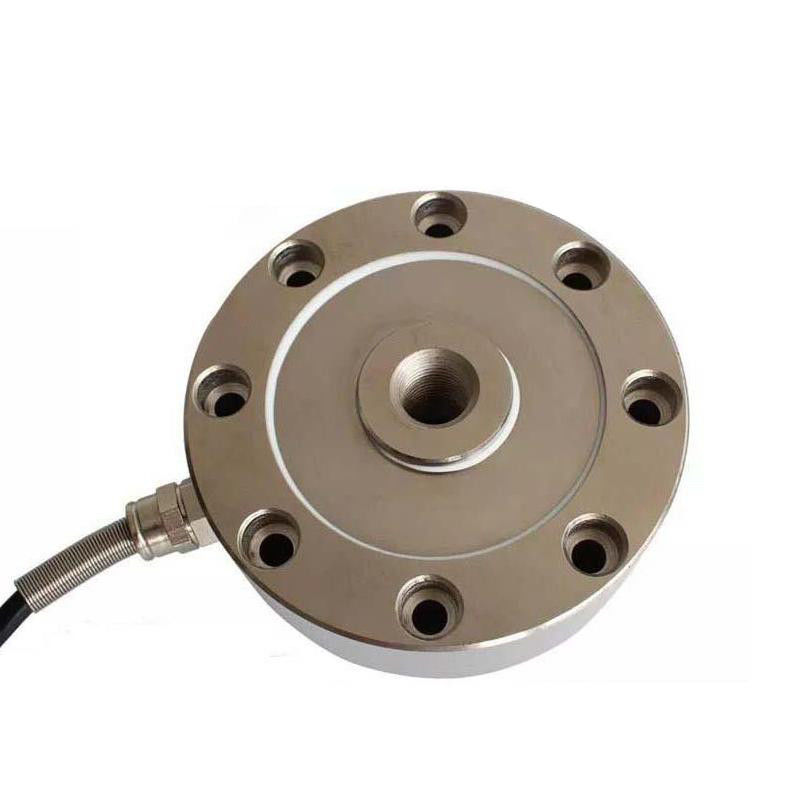

Name: Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
Brand: Jetacon Technology Limited
SKU: YZC-Load Cell
Price: 49.99 USD
Availability: InStock

Home Products Connectors Wiring Harness

Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton

Product Details:

Place of Origin:	China Mainland
Brand Name:	OEM
Certification:	CE
Model Number:	YZC-Load Cell

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	US $49.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100 /Pieces per Day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Waterproof:	IP65
Application:	Weighing Sensor	Zero Output:	± 0.2 MV / V
Capacity:	3000N 5000N 10000N 20000N

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

Parameters:

Capacity	1~100t
Comprehensive precision	0.05% F·S
Sensitivity	2.0 MV/V
Creep	±0.05%F·S/30min
Zero output	±1 %F·S
zero temperature	±0.05 %F·S/10℃
Output temperature	±0.05%F·S/10℃
Working temperature	-20℃~+65℃
Input impedance	380±10Ω or 750±15Ω
Output impedance	350±3Ω or 700±5 Ω
Insulation resistance	> 5000 MΩ
Safety overload	150% F·S
Bridge voltage	Advise 10VDC
Material	Alloy steel

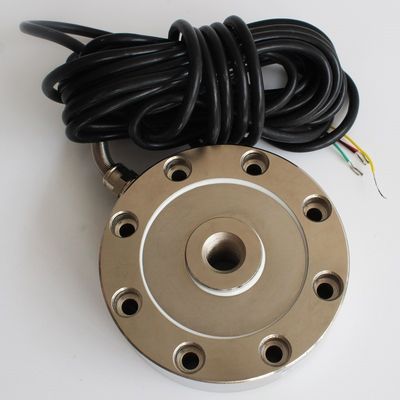

Connection type	Input(+):red input(-):black
Connection type	Output(+):green output(-):white

Q:What are the applications of spoke type load cell?
A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.

Q:What is the raw material?
A: Alloy steel

Q: What is the load range?
A: 1-470T

Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%

Q: How to install?

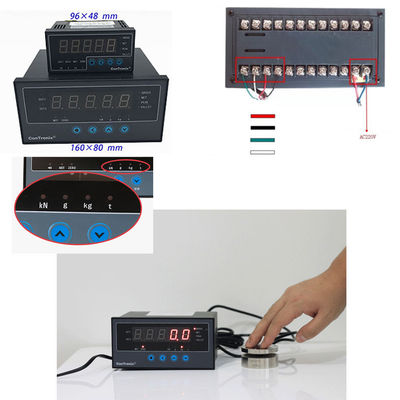

A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator
