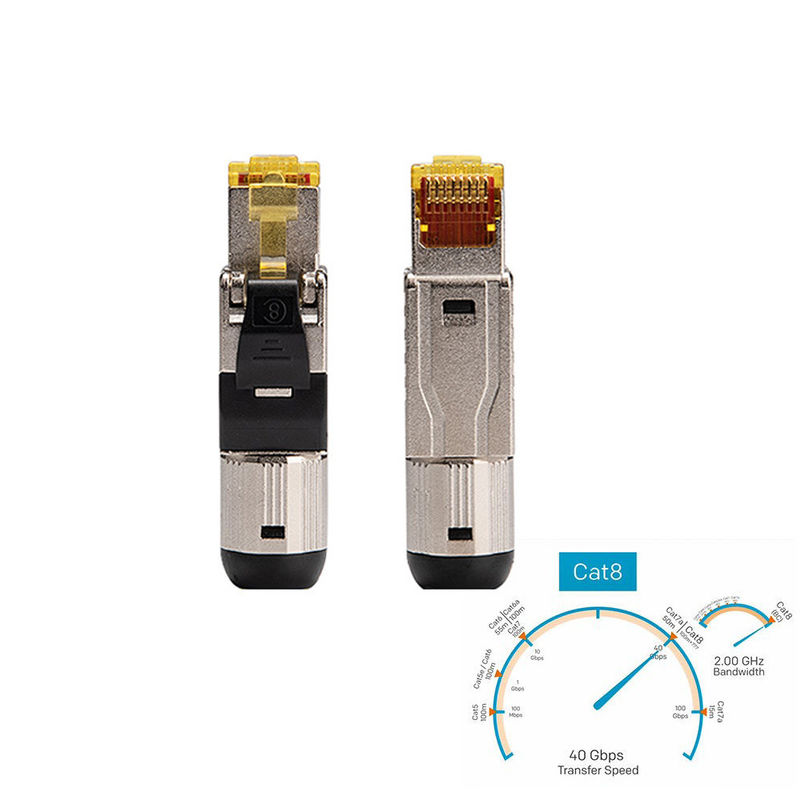

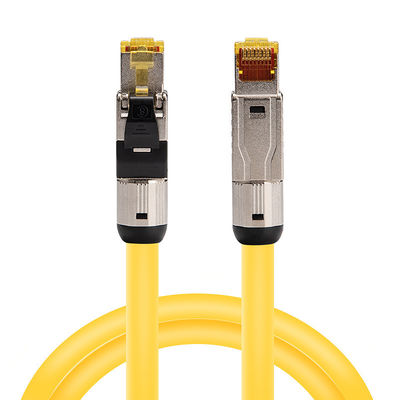

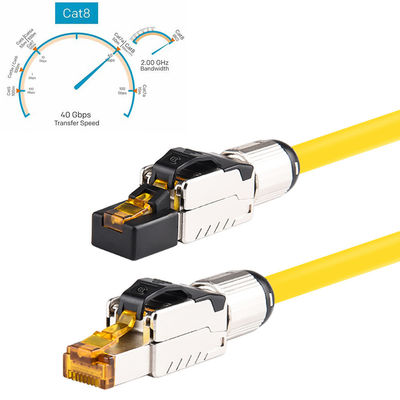

Name: RJ45 Network Modular Plugs Cat8 Shielded Connectors 8P8C High Speed 40 Gbps
Brand: Jetacon Technology Limited
SKU: RJ45-8P8C-Cat7
Price: 9.99 USD
Availability: InStock

Home Products Connectors Wiring Harness

RJ45 Network Modular Plugs Cat8 Shielded Connectors 8P8C High Speed 40 Gbps

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	CE
Model Number:	RJ45-8P8C-Cat7

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	US $9.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Type:	RJ45 8P8C	Application:	Network
Cable Size:	AWG 23 - 26	Color:	Black

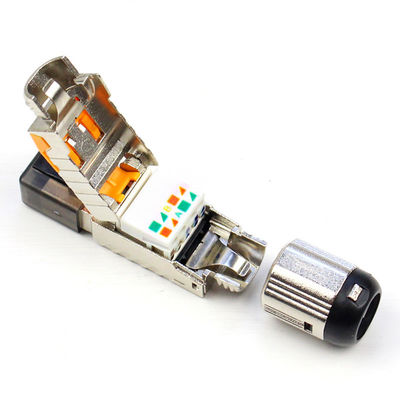

Material of RJ45 plug
1. Housing: Poly carbonate (PC) UL 94V-0 or UL 94V-2
2. Contacts: Phosphor bronze, Nickel plating followed with gold plating: 50 micron ( 50um )
3. Shielding Housing: Brass with nickel plating

Mechanical of RJ45 plug
1. Storage Temperature Range: 0°C~+60°C ; Operating Temperature Range:-40°C~+70°C
2. Relative Humidity:<95% (at 25°C)
3. Durability: 750 mating cycles min

Electrical Performance of RJ45 plug
1. Insulation Resistance: ≥1000M Ohm
2. Contact Resistance: ≤20m Ohm
3. Dielectric Strength: 1000V/DC 60s can't spark over

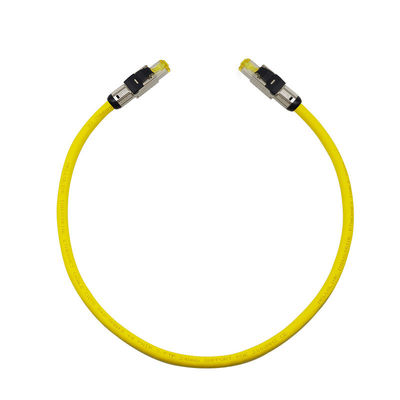

Different Cable Length Customerized is available : 0.5meters, 1 meters, 2 meters, 3 meters, 5 meters, 10 meters, 20 meters, 50 meters

RJ45 Network Modular Plugs Cat8 Shielded Connectors 8P8C High Speed 40 Gbps 0
