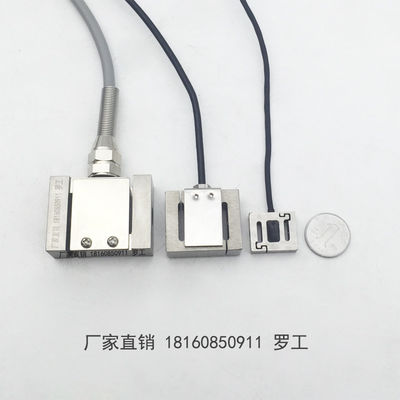

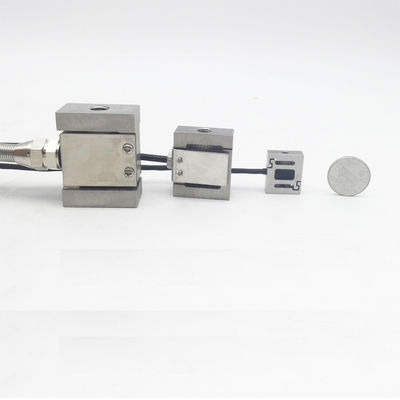

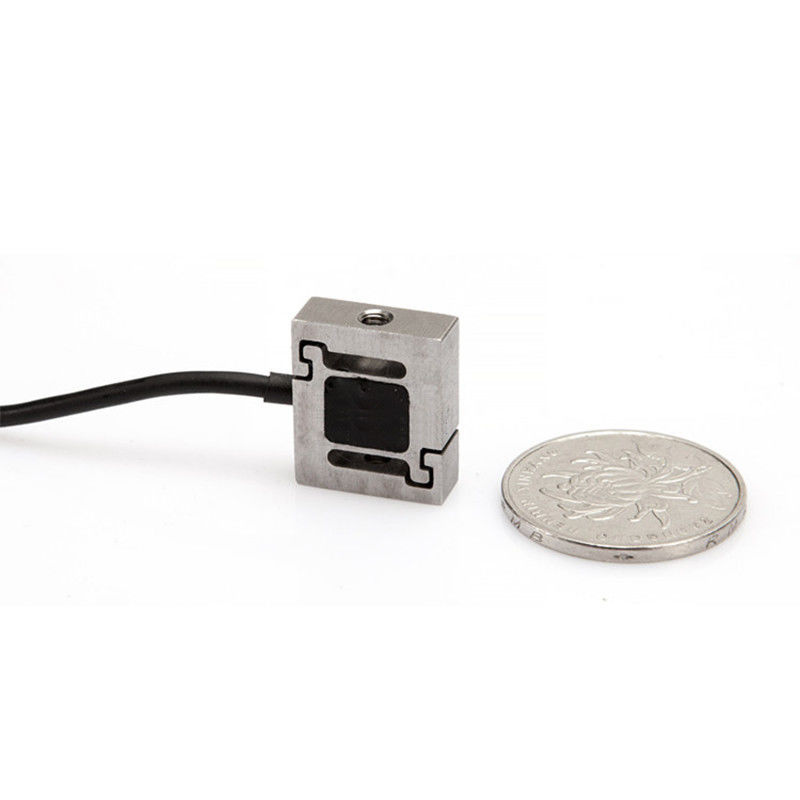

High Precision Stainless Steel Mini S type Load Cell Pull Force Sensor 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

Product Details:

Place of Origin:	China Mainland
Brand Name:	OEM
Certification:	CE
Model Number:	YZC-Load Cell

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	US $49.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100 /Pieces per Day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Waterproof:	IP65
Application:	Weighing Sensor	Zero Output:	± 0.2 MV / V
Capacity:	5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

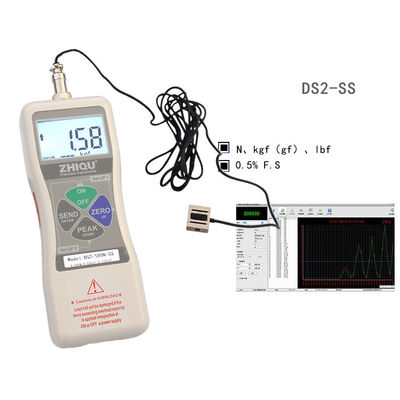

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

Parameters:

Capacity	0-5N~2000N	Material	Stainless Steel
Rated output	2.0 ±10% mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m

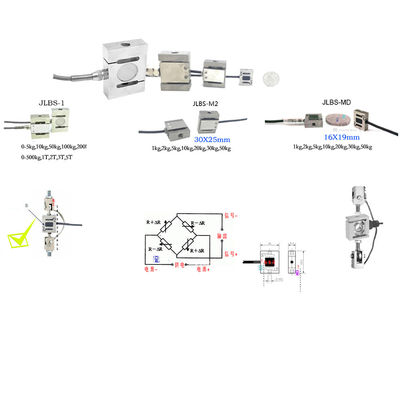

Wire Connection	Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative);
