Name: Plastic Junction Box 125*125*75mm Electric Distribution Enclosure Waterproof Clear Cover with Connectors
Brand: Jetacon Technology Limited
SKU: Junction Box 12512575
Price: Negotiable USD
Availability: InStock

Home Products Terminal Blocks Junction Box

Plastic Junction Box 12512575mm Electric Distribution Enclosure Waterproof Clear Cover with Connectors

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	Junction Box 12512575

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Material:	ABS	Size:	12512575mm
Waterproof:	IP65

Box Material: ABS

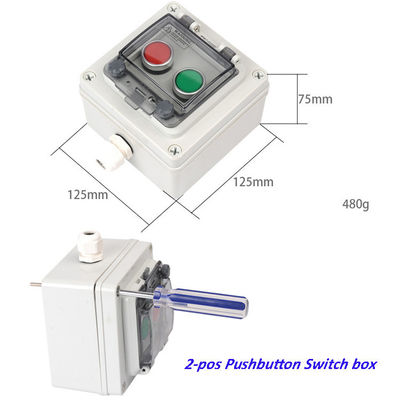

Box outer dimension 125mm length x 125mm width x 75mm height

Wall thickness :2mm

Cable Connectors: PG9 Connectors, UK2.5B Din Rail Terminal Blocks, 32A, 600V

Hole size: 36mm

Cable diameter size range: 18mm -25mm

Walll Mounting Instruction

Installation:

1. Inside Installation: inside the box for the component mounting board or rail bosses.

2. External installation: can be fixed directly to the wall through the mounting holes at the bottom of the cartridge body (by the four corners of the box, with screws or nails fixed directly on the wall or board).
