Name: EM221 6ES7 221-1BF22-0XA0 8 Inputs Digital Module Compatible with PLC S7 200
Brand: Jetacon Technology Limited
SKU: 6ES7 221-1BF22-0XA0
Price: Negotiable USD
Availability: InStock

Home Products PLC S7-200 Compatible Module

EM221 6ES7 221-1BF22-0XA0 8 Inputs Digital Module Compatible with PLC S7 200

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	6ES7 221-1BF22-0XA0

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Completely compatible with plc S7 200 software,CPU and Extension Module,

It can perfectly replace each other,and plc step 7-MICRO/WIN programming software supported.

Type Number Available :

Digital modules

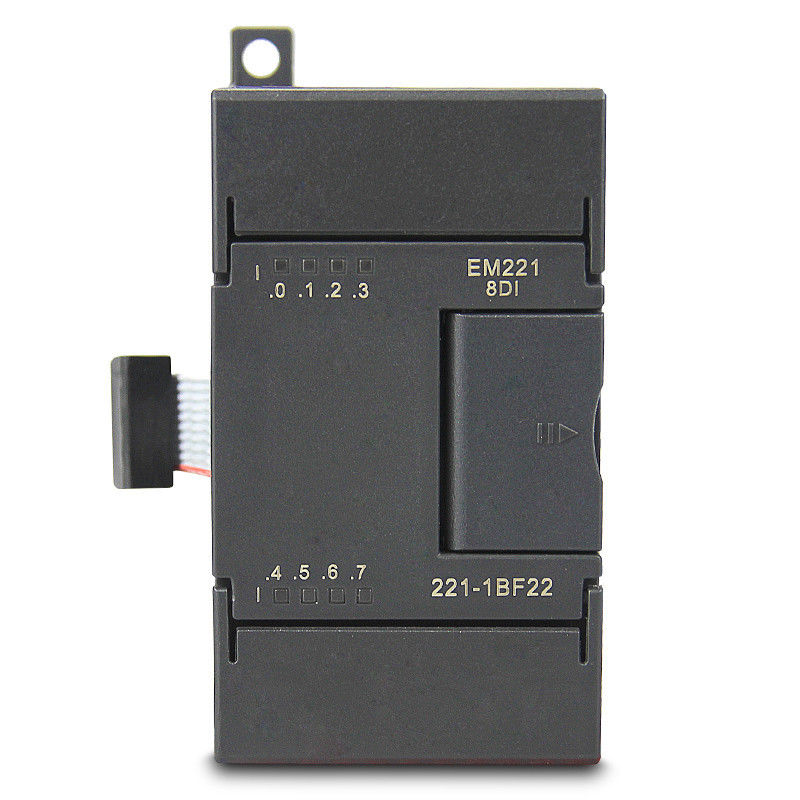

6ES7 221-1BF22-0XA0 Expension 8 DI 24 V DC

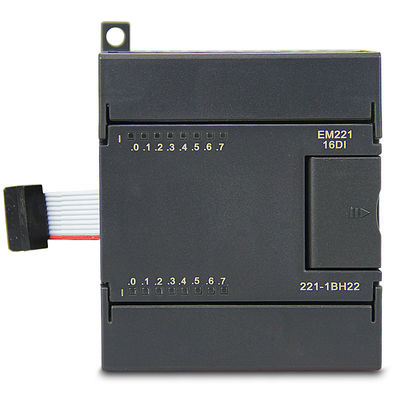

6ES7 221-1BH22-0XA0 Expension 16 DI 24 V DC

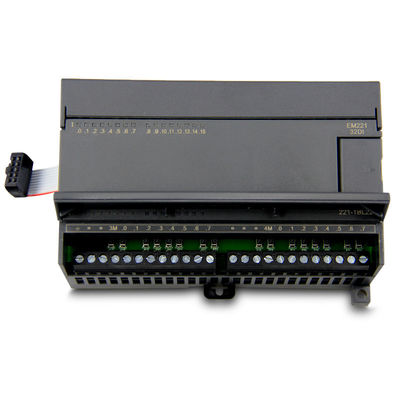

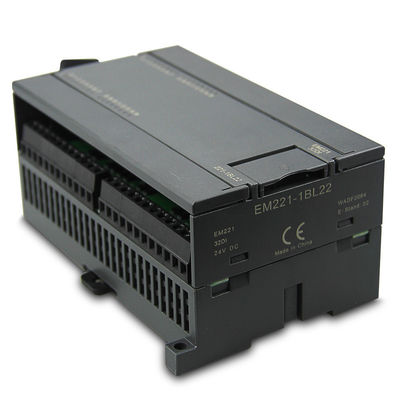

6ES7 221-1BL22-0XA0 Expension 32 DI 24V DC

Model	EM221 8 inputs
From bus current consumption	40mA
Power loss	2W
Number of digital inputs	8
Signal input type·	PNP/NPN
Input voltage range	24V DC,4mA
Maximum input voltage	30V DC
Surge voltage	35V DC,0.5s
Logic 0 signal	0~5V DC
Logic 1 signal	15~30V DC
Input delay(max)	4.5ms
Optical isolation(Galvanic) (Field Side to Logic)	500 V AC for 1 minute
Premissible leakage current(Bero)	1mA
Cable Length	500m(Shielded ) 300m(Unshielded)
Dimensions(W x H x D)(mm)	46×80×62
Order Number	UN 221-1BF22-0XA0
