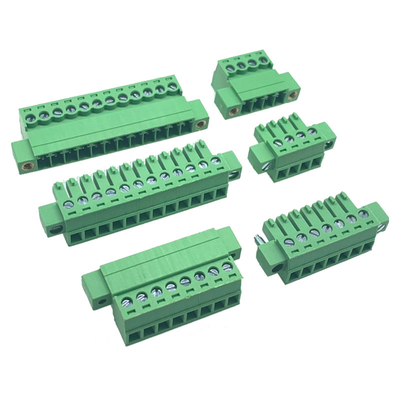

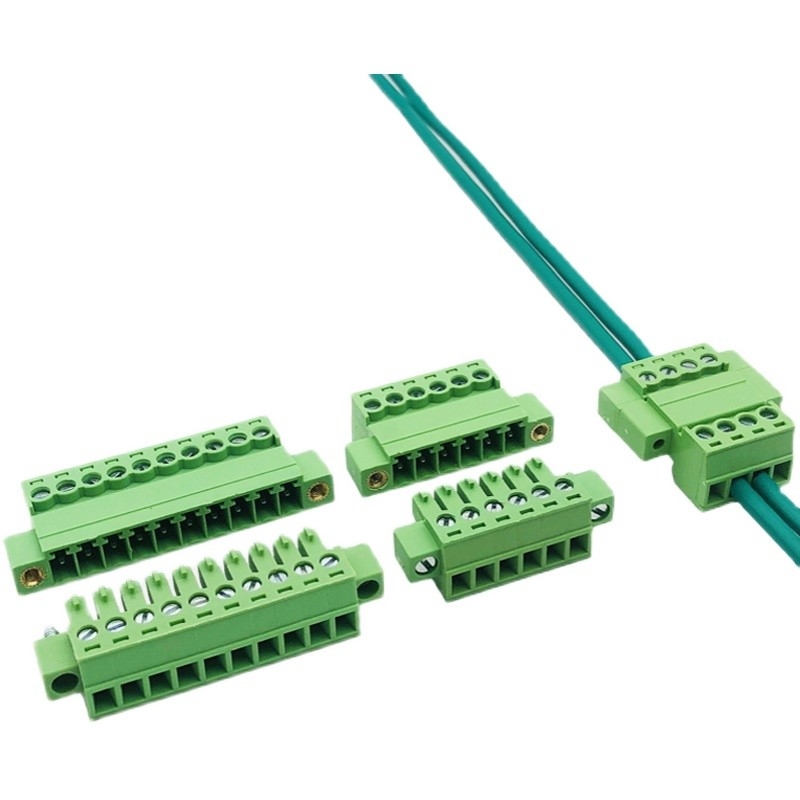

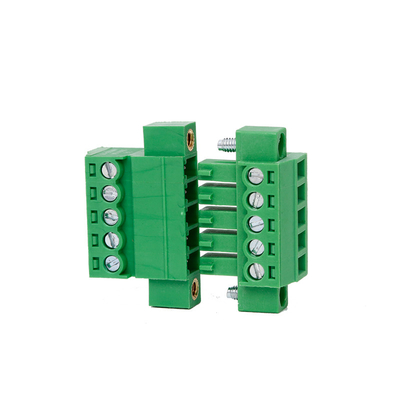

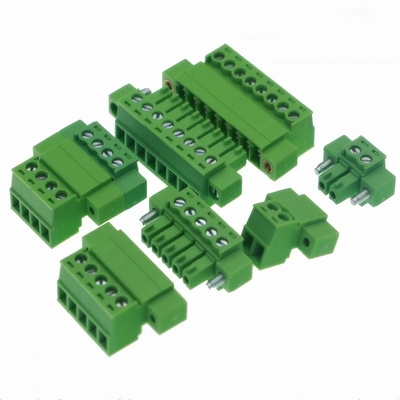

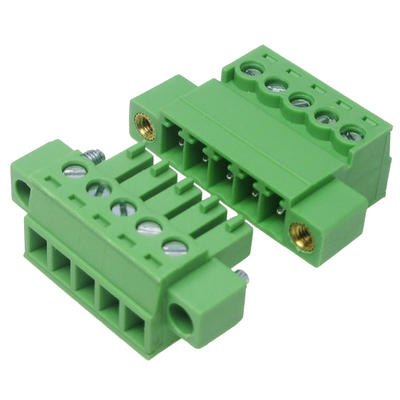

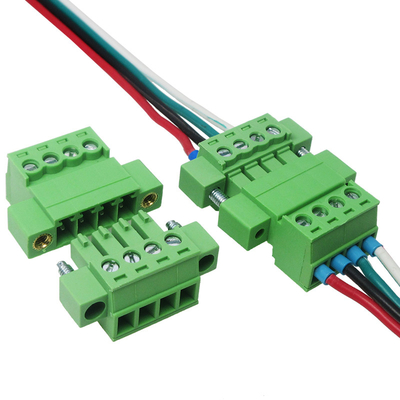

3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks

3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks

  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
  • 3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 2EDGRKP-3.81 / 2EDGRKM-3.81
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: US $0.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Contact Now
Detailed Product Description
Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
Type: Screw

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch:5.08mm
Poles: 2 pins to 24 pins
Color: Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 16~20AWG
3.81mm Spacing Interlocking Flange Docking Screw Terminal Blocks 0
